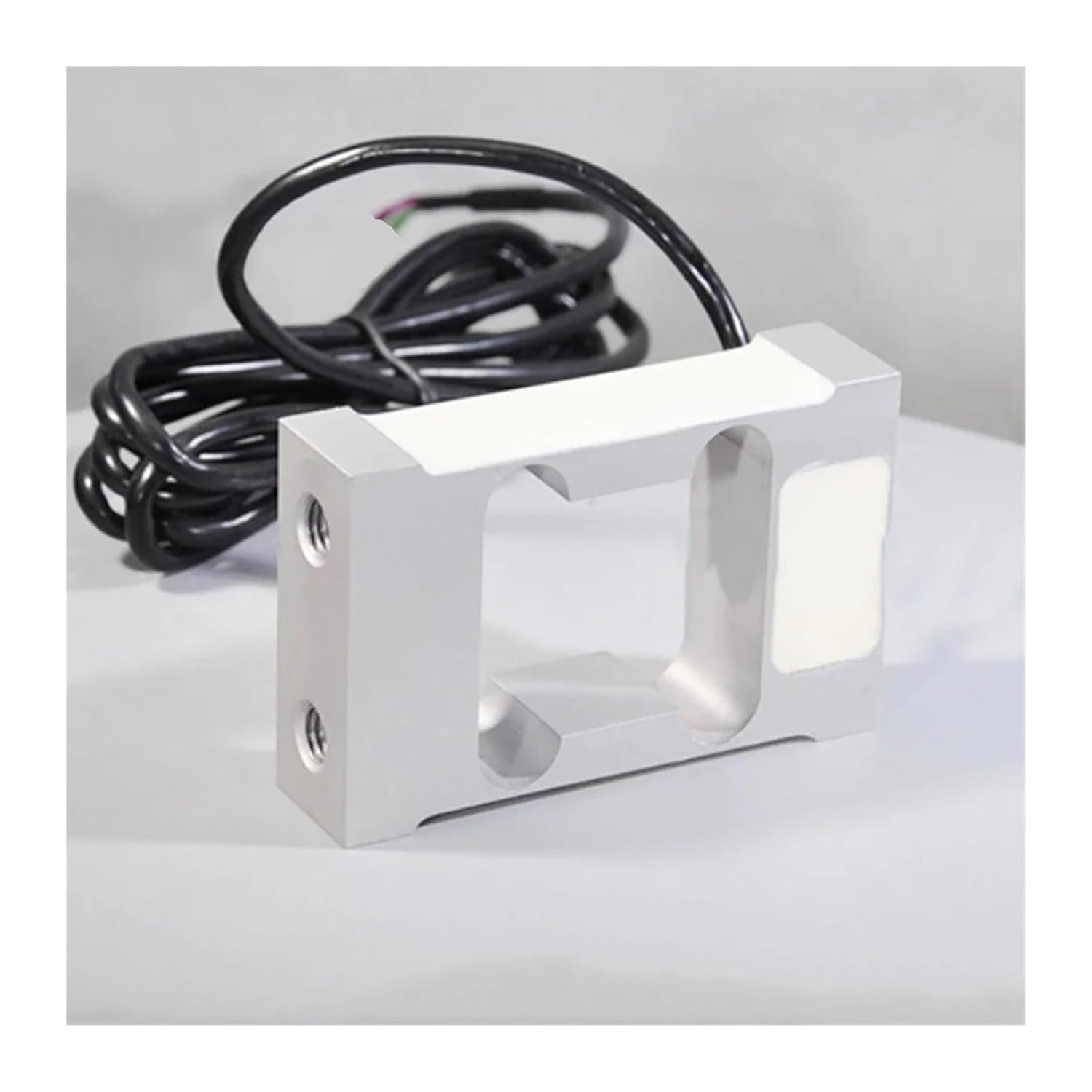

for Industrial and Laboratory use, Load Cell Sensor Single Point Weighing Force Transducer for Electronic Bench Scale(8kg)

Product Name:Load Cell Sensor Single Point Weighing Force Transducer For Electronic Bench ScaleModel: L6H5Product range: 4kg-30kgProduct Material: Aluminum AlloyProduct Usage: Used for industrial weighing, packaging scales, electronic scales, inspection scales, belt scales, sorting scales, ingredient scalestechnical indicatorsOutput sensitivity: 2.0 ± 0.2 (mVN)Accuracy: C3Comprehensive error: ≤ 0.02 (% FS)Creep: 0.0167 (% FS/30min)The effect of temperature on output sensitivity: ≤± 0.0175 (% FS/10 ℃)The effect of temperature on zero point output: ≤ 0.02 (% FS/10 ℃)Zero point output: ≤ 2 (% FS)Temperature compensation range: -10~40 (℃)Allowable temperature range: -35~+65 (℃)Input impedance: 406 ± 6 (Ω)Output impedance: 350 ± 3 (Ω)Insulation impedance: ≥ 5000 (M Ω)Safe overload range: 120 (% FS)Extreme overload range: 150 (% FS)Cable specification: 3.8mmCable length: 0.17mRecommended scale size: 200x200mmFour corner error: 0.02% loading value/100mmRecommended installation torque: 10N. m

• High Precision Load Cell: Our Single Point Load Cell Sensor is designed for exceptional accuracy in weighing applications, with a comprehensive error rate of ≤ 0.02 (% FS) and an output sensitivity of 2.0 ± 0.2 (mVN), making it for electronic bench scales
• Robust Aluminum Alloy Construction: Built from aluminum alloy, this load cell sensor ensures longevity and reliability in various environments, from industrial weighing to packaging and inspection scales
• Wide Temperature Compensation Range: This load cell operates efficiently within a temperature range of -10~40 (℃) and can withstand extreme temperatures from -35 to +65 (℃), ensuring consistent performance regardless of environmental conditions
• Versatile Applications: The Load Cell Sensor is for a multitude of uses including belt scales, sorting scales, and ingredient scales, providing versatility for any weighing requirement in commercial or industrial
• Stable Performance Under Load: With a safe overload range of 120 (% FS) and an extreme overload capacity of 150 (% FS), this load cell sensor guarantees stability and reliability even under heavy loads, ensuring accurate readings every time
